Auxbeam V-ULTRA Series 6/8 Pcs 5 Inch 172W LED Side Shooter Amber DRL with Power Harness - GP00011304

Auxbeam V-ULTRA Series 6/8 Pcs 5 Inch 172W LED Side Shooter Amber DRL with Power Harness - GP00011304

▶5 Inch LED Driving Lights

Features:

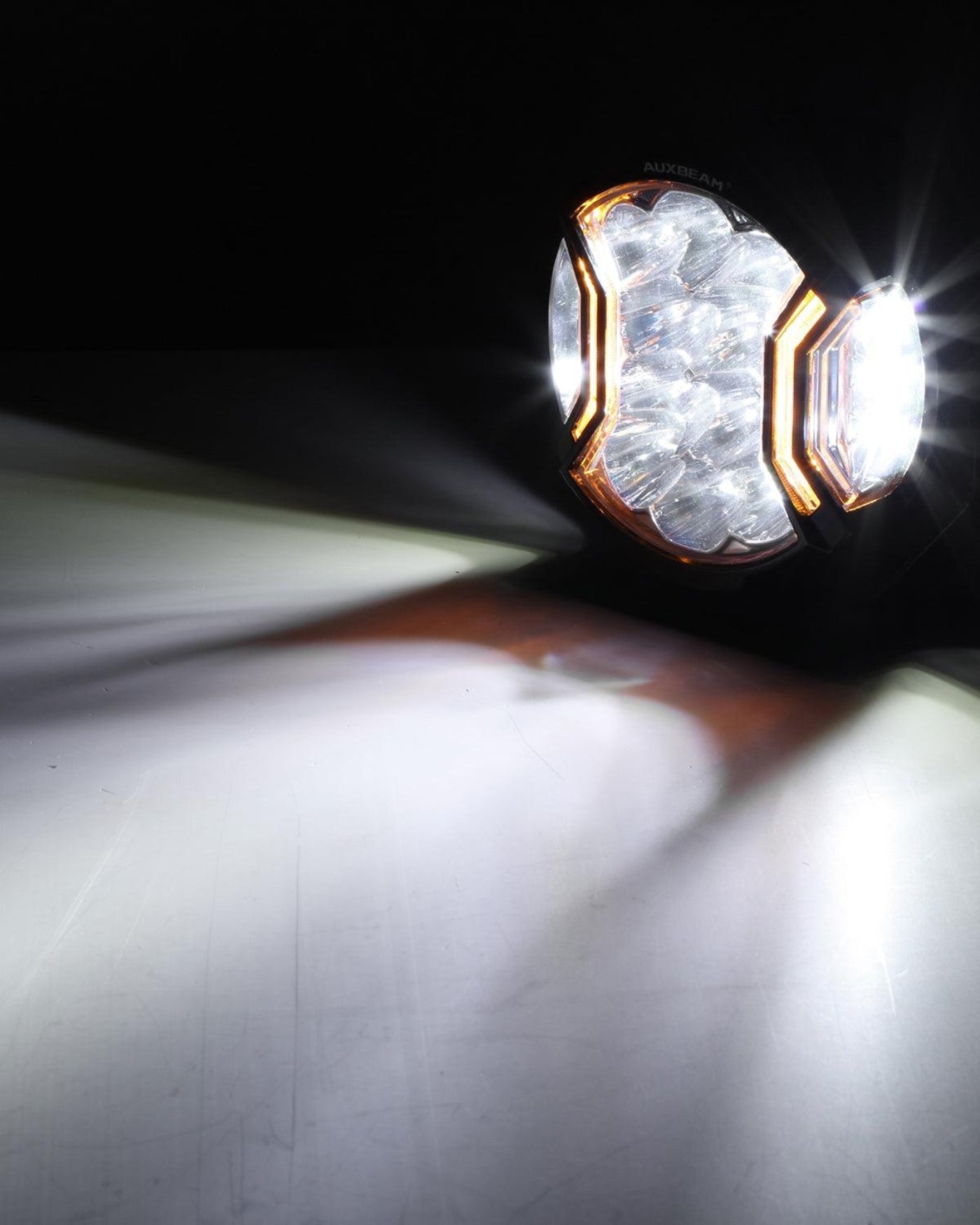

Side Shooter Design: Designed with dual side lights to work together with front spot light. Light coverage to clear darkness and potential hazard, increasing your driving safety.

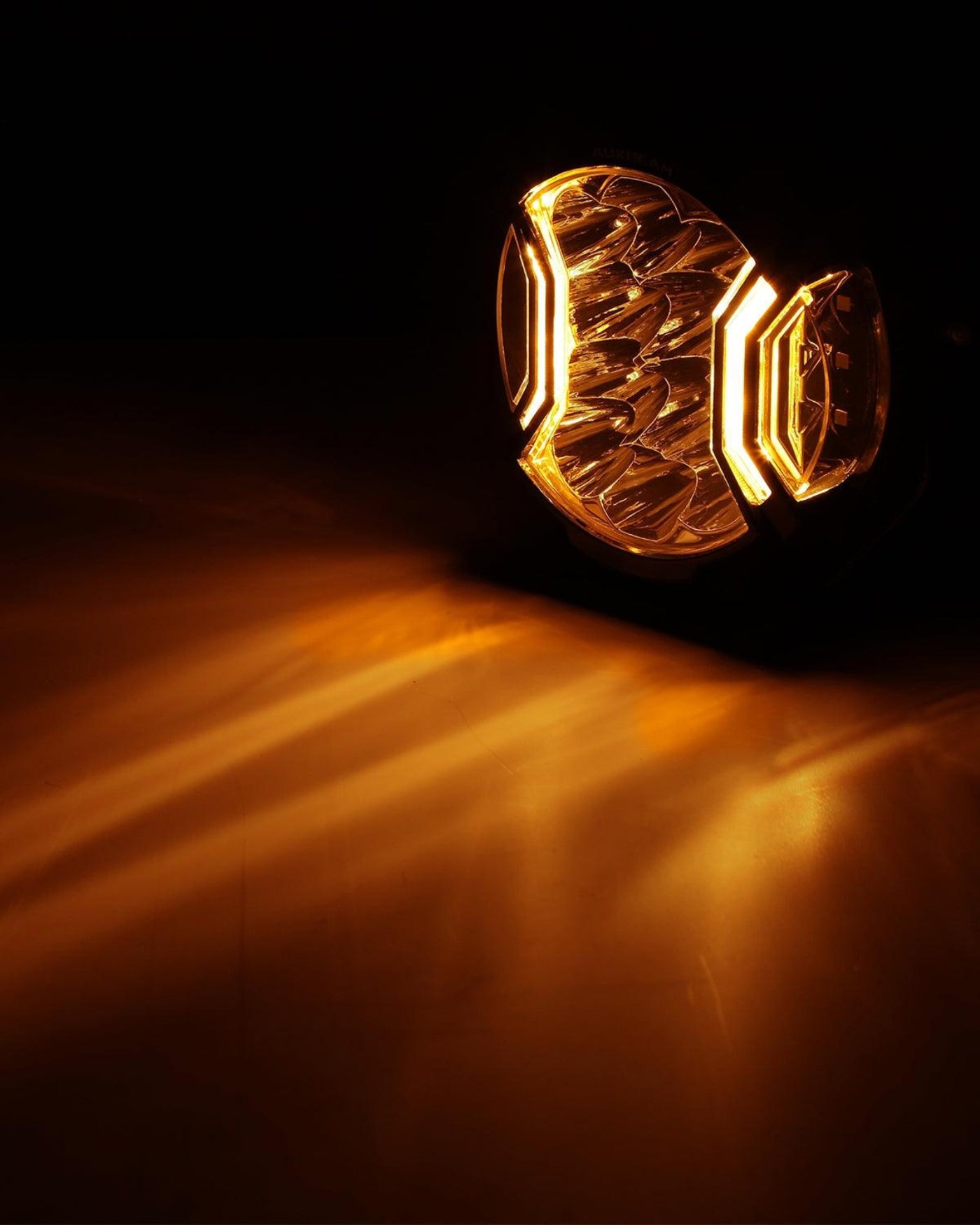

Amber DRL Light Feature: Our DRL design is truly one-of-a-kind. We've added an amber DRL light function that works in tandem with our ultra-bright white light. Not only alerts other drivers in foggy or rainy conditions, but also complements other weak headlights on your vehicle. This feature also adds a touch of fashion style and elevates its overall appearance.

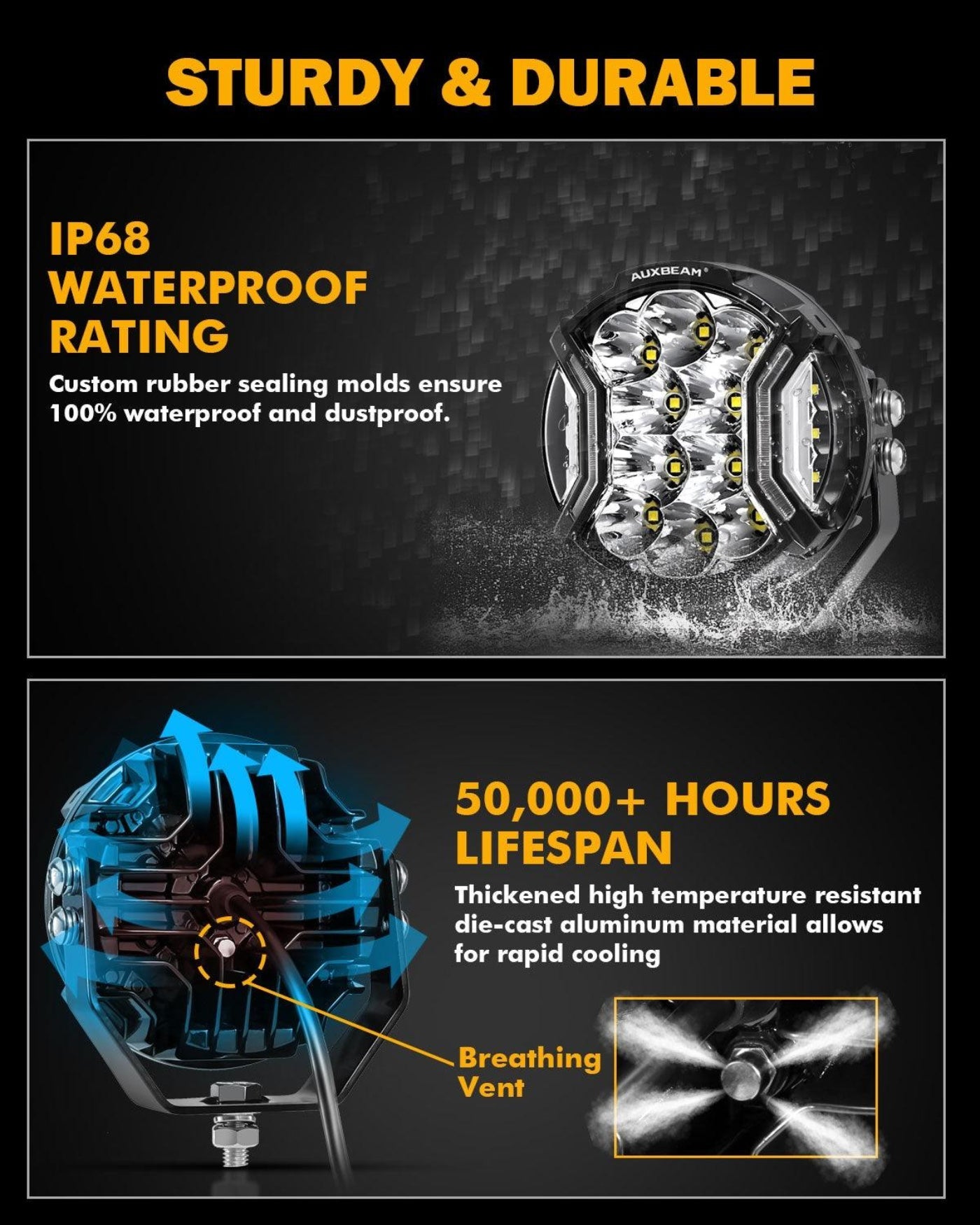

IP68 Waterproof Design: Our newest LED work light has IP68 waterproof rate, protective housing, and sturdy brackets. This ensures that rain, fog, moisture, or dust won't penetrate the bar and cause damage. With exceptional waterproof, dustproof, and shockproof performance, you can trust that our led driving light will withstand even the toughest conditions.

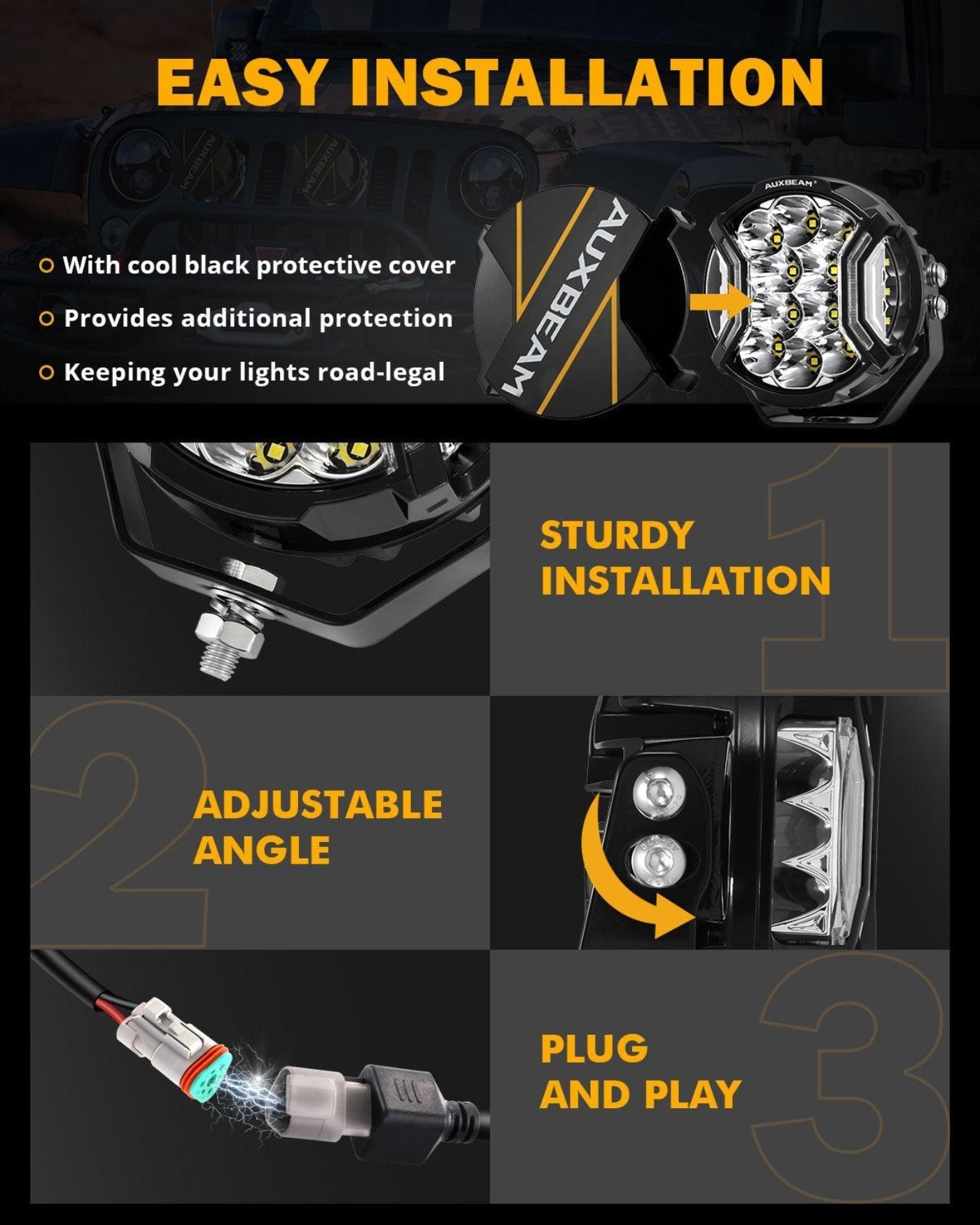

Easy to Installation: We understand that the installation process can be a hassle, which is why we've made it easy for you. Our LED lights come with installation instructions and a plug-and-play wiring harness kit, allowing you to replace your old dim filament lamps in just a few minutes. Say goodbye to the tedious installation process and hello to hassle-free lighting.

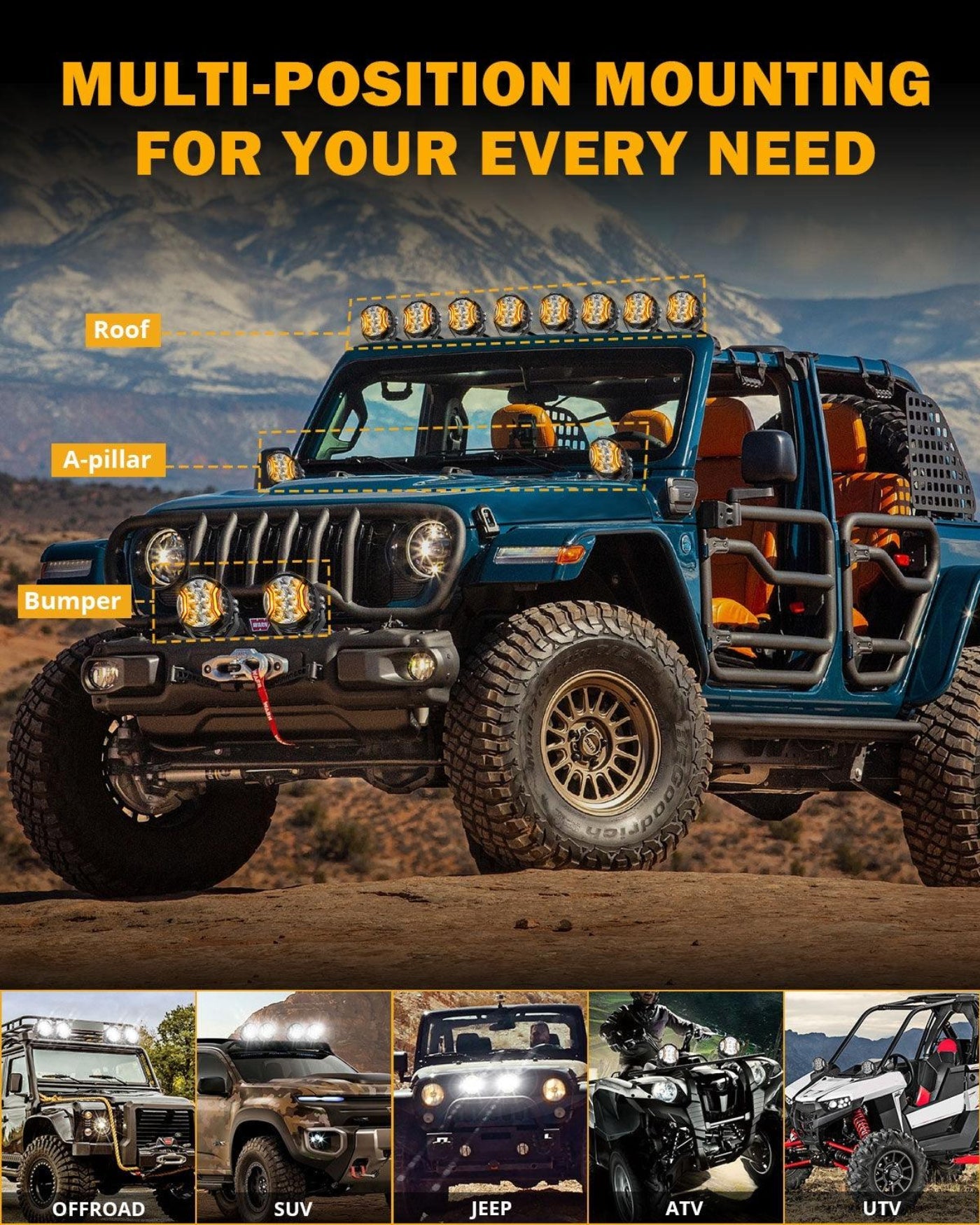

Wide Application: Our LED pod lights are incredibly versatile and can be mounted on a variety of surfaces, including the roof rack, bull bar, headache rack, and running bar. They're suitable for use with almost all off-road vehicles, motorcycles, ATVs, UTVs, SUVs, construction vehicles, trucks, buses, pick-ups, marine vessels, boats, and more. With an operating voltage of 9-24V, our LED pod lights are a reliable and efficient lighting solution for all your needs.

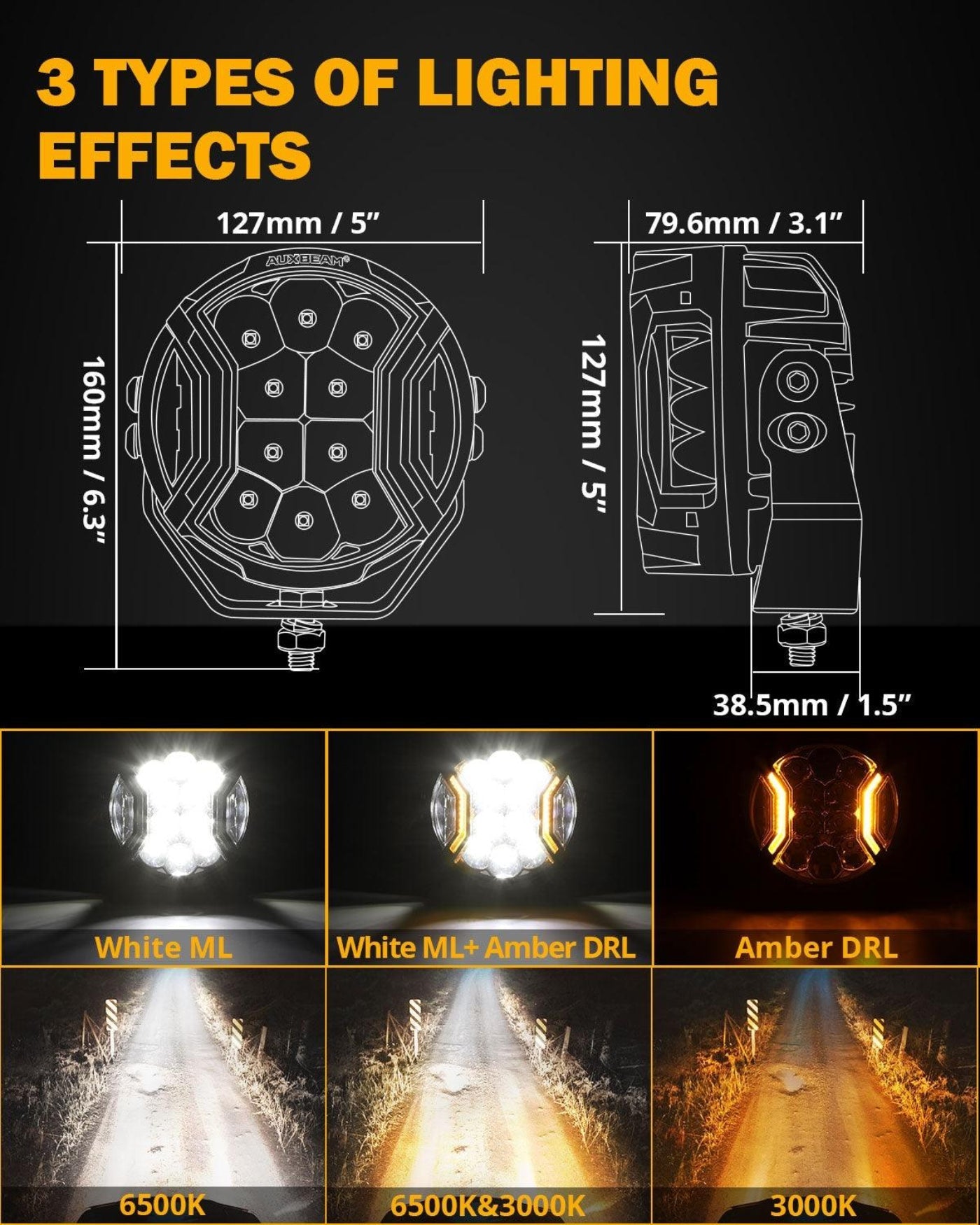

Specification

• Size: 5 Inch

• Quantity: 2Pcs

• Power/Set: 86W*2(Spotlights 80W+Amber DRL 6W)=172W

• Total Lumens: 20400LM(19200LM+Amber DRL 1200LM)

• Housing Material: Aluminum Alloy

• Lens Material: PC

• Lamp Beads Model(Each): P8 5W/PCS*16+2835 SMD 6W

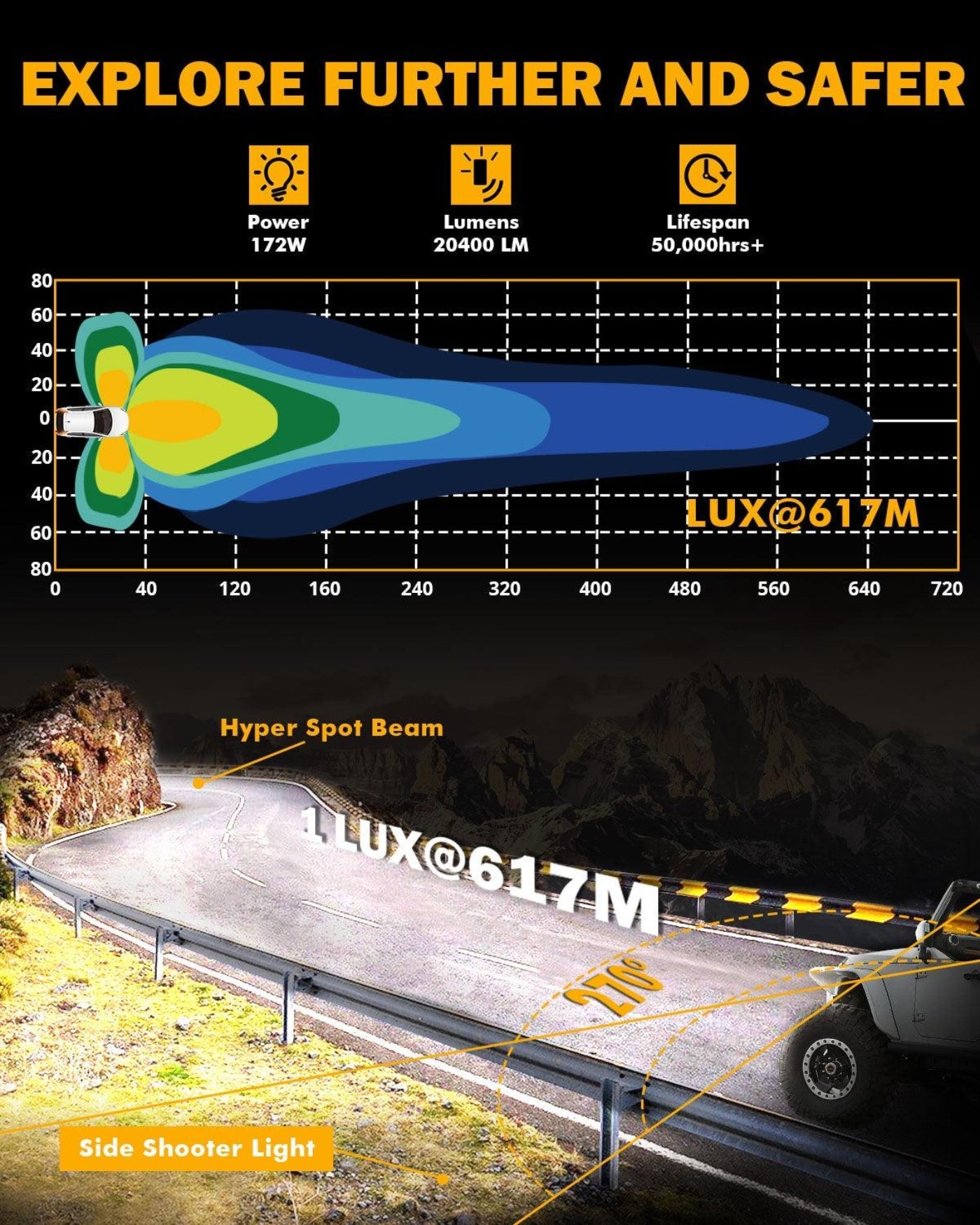

• Lighting Distance: 1 LUX@617M

• Beam Pattern: (Spot+Flood)Combo Light+Double-Side Shooter Light

• Light Color: White+Amber DRL

• Color Temperature: 6500K White+3000K Amber DRL

• Light Cover: Black

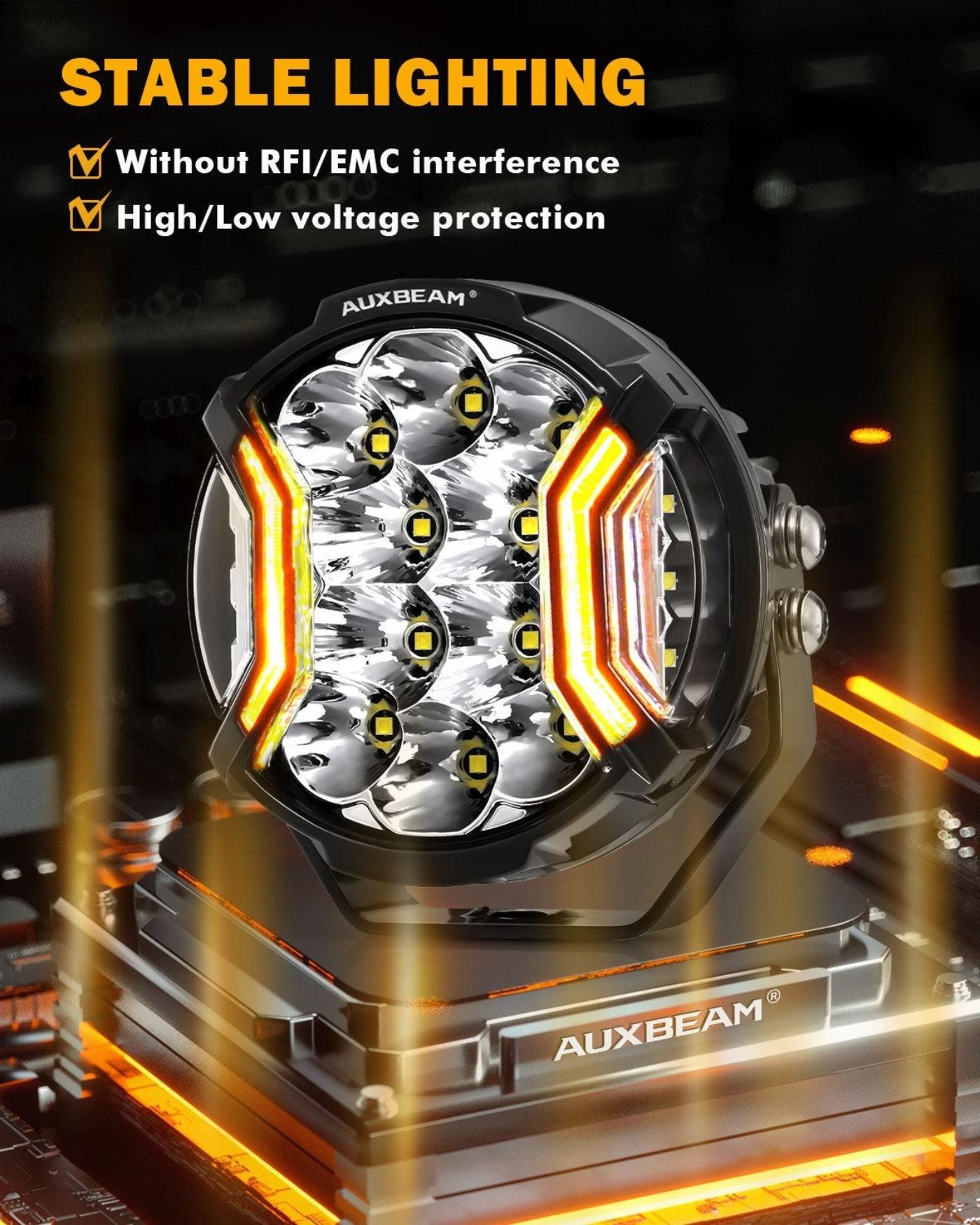

• With EMC/EMI: Yes

• Fit Model: Universal

• Life Time: 50000+ hours

• Housing Color: Black

• Waterproof Rate: IP68

• Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced
• with 24V)

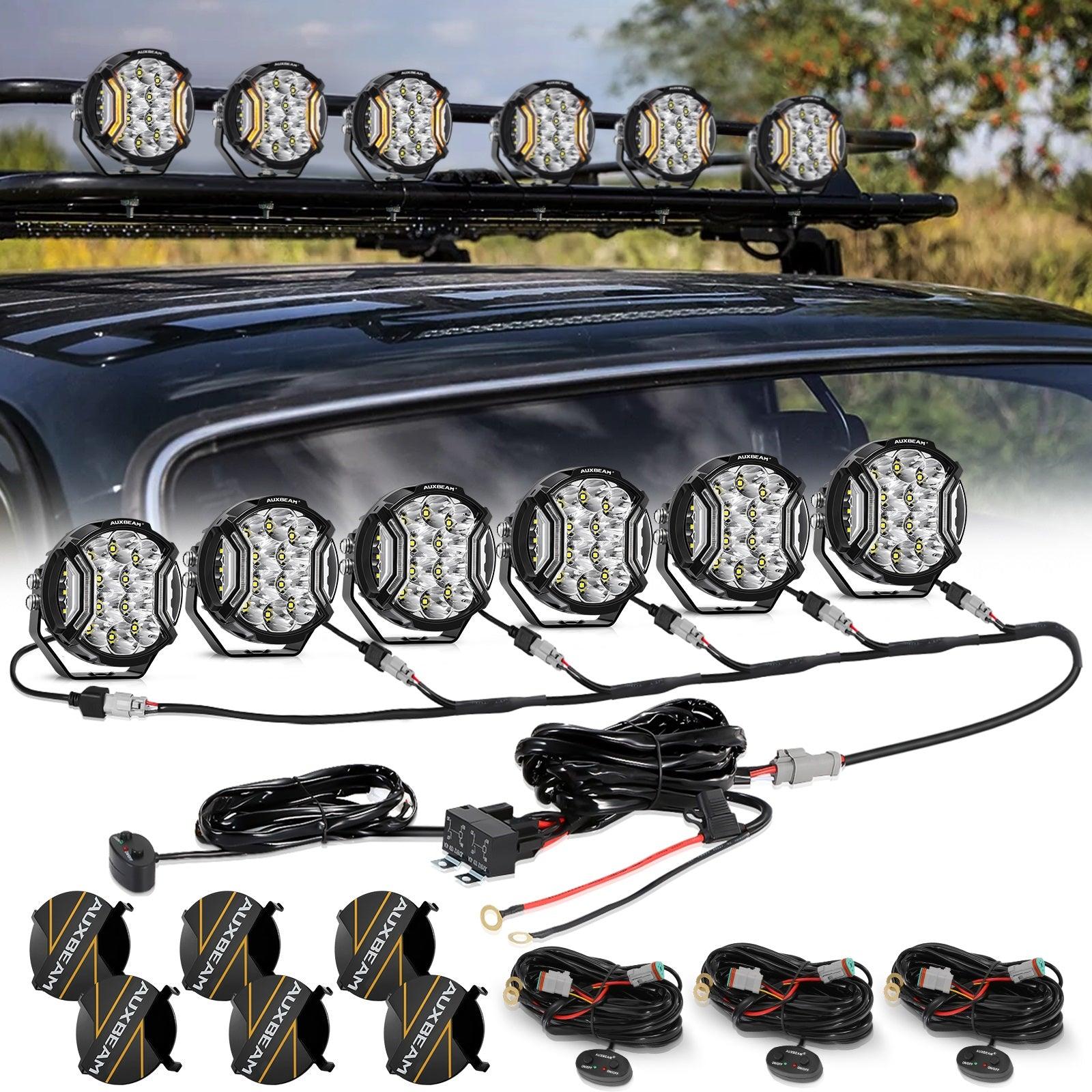

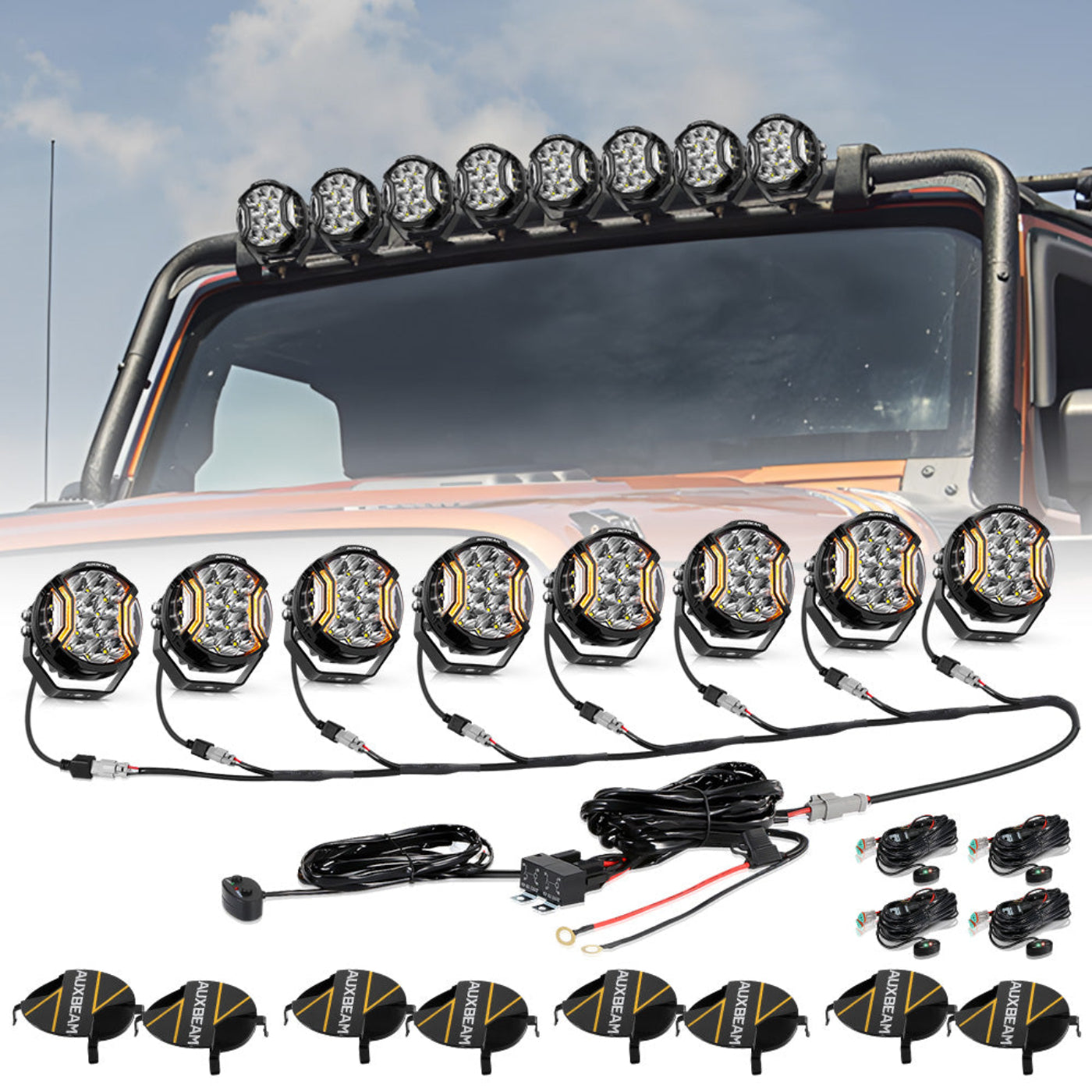

Packing Included

• 2 X LED Driving Light（With DT Plug）

• 2 X Light Cover（Black）

• 1 X Wiring Harness（With DT Plug）

• 1 X Srew Accessories

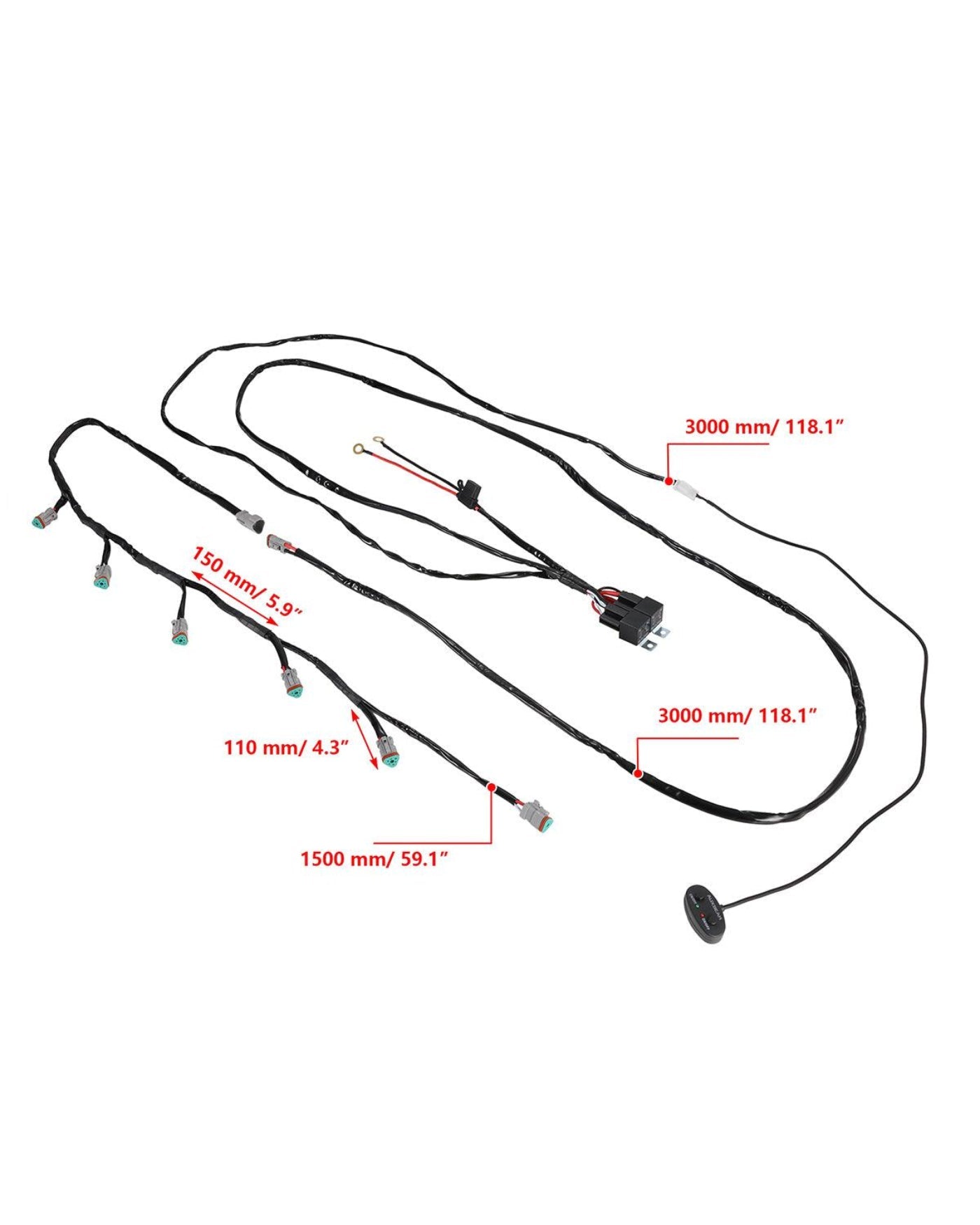

6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

• 6-Pod Lights (A maximum of six pod lights can be installed):
  ZD000753/ZD000765/ZD000764/ZD000752/ZD000762/ZD000763/ZD000820/ZD000821


• 4-Pod Lights (A maximum of four pod lights can be installed):
  ZD000617/ZD000483/ZD000484/ZD000696/ZD000692

Features

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification

Connect Number Light: Max 6 Pods
Switch Button: Three Mode（Main Light,DRL and Both)
Wire Length: 3M Extension Cord +1.5M Connect Cord
Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG national standard（DRL 18AWG）
Wire Material: 5 mm² copper wire (DRL 0.75mm²)
Working Voltage: 12V（Replaceable 24V relay）
Leads Power: Max 480W(current 40A)(DRL 72W&6A)
Fuse Size: 40A
Delay: Double 12V Delay

What Our Experts Think

The Auxbeam V-ULTRA Series 6/8 Pcs 5 Inch 172W LED Side Shooter Amber DRL with Power Harness is a powerful lighting upgrade for enhanced visibility and safety. Here’s why it stands out:

• Wide-Angle Illumination: The 5-inch side shooter pods provide 172W of total power, offering broad and intense lighting for improved visibility on all sides.
• Amber DRL for Increased Safety: The amber Daytime Running Lights (DRL) not only provide a stylish look but also make your vehicle more visible to others during daylight hours.
• Efficient and Long-Lasting: These LEDs are designed for energy efficiency, offering both high brightness and long lifespan, making them a reliable lighting solution.
• Easy Installation: Comes with a power harness, allowing for a simple and straightforward setup, saving you time and effort.
• Durable and Weatherproof: Built with rugged, waterproof construction to endure harsh conditions, ensuring lasting performance in any environment.

Q&A

Q: What’s included in the Auxbeam V-ULTRA Series 5-inch LED side shooter kit?
A: The kit includes 6 or 8 pieces of 5-inch 172W LED side shooter lights with amber DRL (Daytime Running Lights) and a power harness for easy installation.

Q: What makes the LED side shooter lights unique?
A: The LED side shooter lights are designed to provide wide, peripheral lighting, making them perfect for off-road use. They offer enhanced visibility of your surroundings, especially during off-roading in dark or challenging environments.

Q: How bright are the 172W LED side shooter lights?
A: Each 5-inch light outputs 172W, providing a powerful, bright beam that lights up the trail or surrounding areas, ensuring maximum visibility in low-light or off-road conditions.

Q: What is the benefit of amber DRL lighting?
A: The amber DRL adds visibility during the day and offers a stylish look. It improves your vehicle's presence on the road and enhances safety, particularly in foggy or rainy conditions.

Q: Is a power harness included in the kit?
A: Yes, the kit includes a power harness for easy installation, making it simple to wire and connect the lights to your vehicle without additional parts.

Q: Are these lights built for off-roading?
A: Absolutely! The V-ULTRA Series LED side shooter lights are specifically designed for off-road use, offering durable, waterproof performance and powerful light output to handle rugged conditions.

Q: How many lights are included in the kit?
A: The kit comes with either 6 or 8 LED side shooter lights, allowing flexibility in lighting coverage depending on your needs.

Maintenance Tips

• Clean Regularly – Use a soft, damp cloth to remove dirt and debris from the LED pods, ensuring optimal light output.
• Check for Moisture – Inspect the LED pods for any condensation or water inside and reseal if needed to prevent damage.
• Inspect the Power Harness – Ensure the power harness is securely connected and free from wear or damage for reliable function.
• Tighten Mounting Hardware – Periodically check and tighten the mounting brackets to avoid vibrations or misalignment.
• Wiring Check – Regularly inspect wiring for fraying, wear, or corrosion to maintain safety and performance.
• Proper Alignment – Make sure the LED side shooters are properly aligned to provide the best amber DRL coverage.
